Mcq 08-24T Mixing Nozzle For Two-Component Adhesives, Green Static Mixer, Quadro C-Type Flare, Precise Material Mixing, Luer Lock Tip

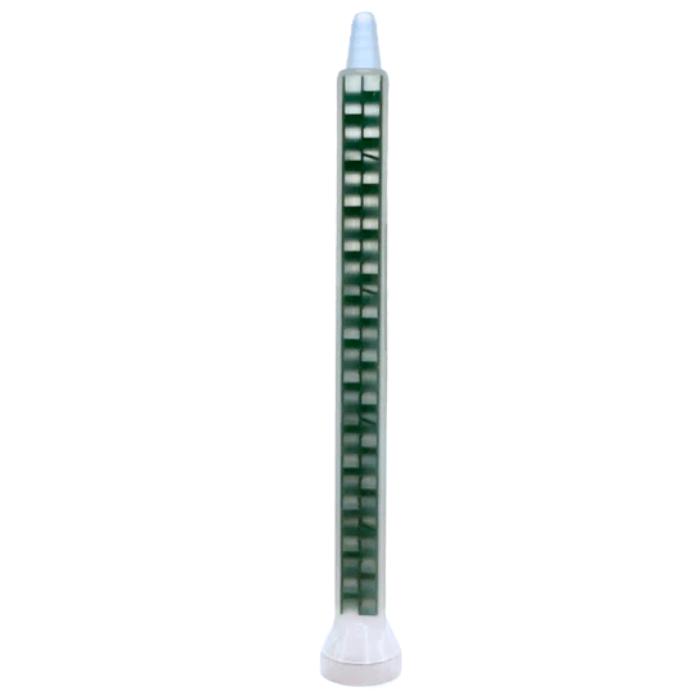

MCQ 08-24T Mixing Nozzle

The MCQ 08-24T Mixing Nozzle is a technologically advanced static mixer designed for the precise mixing of a variety of high-viscosity substances. Made of durable polypropylene, this nozzle features a compact design, low waste volume, and is equipped with a Luer Lock tip for use with dispensing needles.

Thanks to the use of Quadro Mixer technology and 24 mixing elements, this mixer ensures efficient and uniform mixing, which is crucial in industrial processes such as mixing two-component adhesives, resins and other materials requiring precise dosing.

Advantages of the MCQ 08-24T mixing nozzle

The MCQ 08-24T nozzle offers a number of advantages that ensure exceptional efficiency and mixing quality in industrial applications:

• High mixing precision: The use of Quadro Mixer technology guarantees uniform mixing of substances with different viscosity properties.

• Low waste volume: The compact design allows for minimal material loss, which reduces production costs.

• Versatility: Can be used with various cartridge systems, including cartridges with capacities from 210 to 490 ml.

• Ease of assembly: The nozzle has a standard industrial connector.

• Luer Lock tip: Enables precise dispensing using dispensing needles, which increases control over the application.

• Durable material: Made of polypropylene, it provides resistance to wear and the effects of many chemicals.

Applications of the MCQ 08-24T mixing nozzle

The MCQ 08-24T mixing nozzle is widely used in the industrial sector, especially where precision and uniform mixing are required:

• Mixing two-component adhesives with high viscosity in industrial production.

• Dosing and mixing epoxy and polyurethane resins.

• Precision applications in electronics, the production of mechanical components, and assembly elements.

• Applications in the construction industry for mixing filler materials and sealants.

Parameter | Value

Mixing technology | Quadro Mixer / Turbo (Square) Mixer

Material | Polypropylene

Diameter of mixing elements | 8.70 mm

Outer diameter | 11.50 mm

Housing length | 14.70 cm

Housing Inlet | Bell 16.7 mm

Number of Mixing Elements | 24

Outlet Nozzle Hole | 3.20 mm

Outlet Nozzle Type | Stepped

Thread | MGQ 7/8" - 9 UNC

Capacity | 8.44 ml

Units per Package | 1300 pcs.

The MCQ 08-24T mixing nozzle should be stored in a dry and clean place, away from direct sunlight and heat sources. It is recommended that nozzles be stored in their original packaging to protect them from contamination and mechanical damage.

The product should be stored at room temperature to maintain its full functionality and durability.

The MCQ 08-24T mixing nozzle is an innovative static mixer designed for professional industrial use. Thanks to advanced Quadro technology, 24 mixing elements, and a durable polypropylene construction, it ensures high mixing quality while minimizing material loss.

An excellent choice for industries requiring precise dosing and reliable operation in a variety of assembly and production applications.
