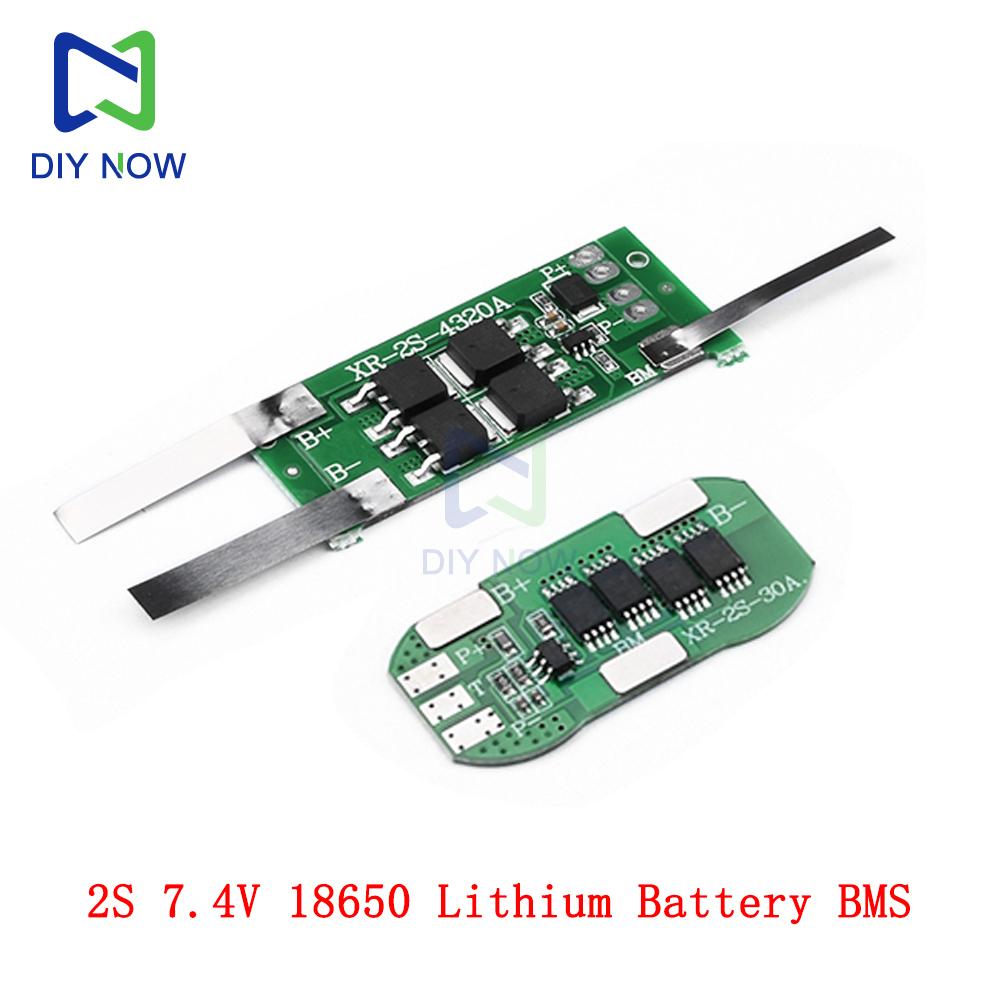

BMS 2S 18650 7.4V 8.4V Li-ion Lithium Battery Charge Discharge Protection Board PCB 5A 6A 10A Protect Circuit Plates Module

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 7.4V Application : Li-ion Lithium Battery Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

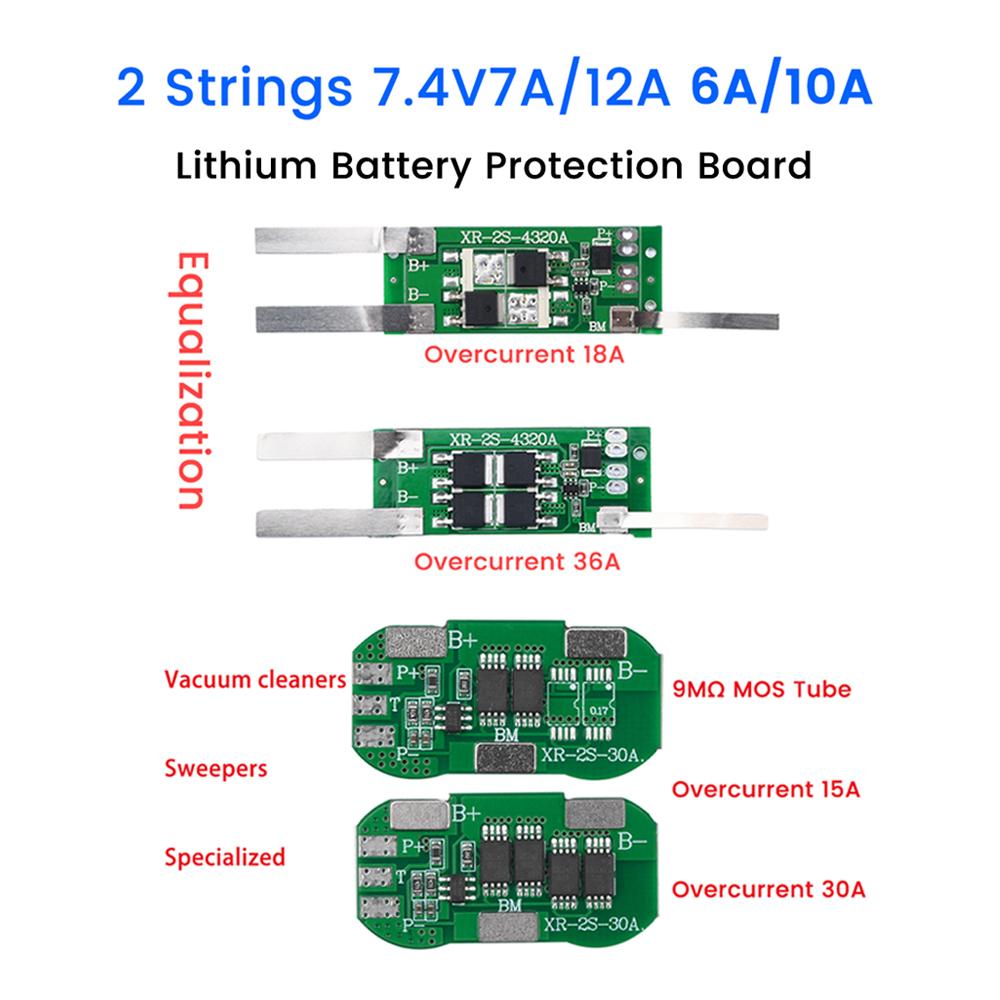

Features: 1. Using high quality materials, product quality is guaranteed 2. Stable performance, easy to use 3. Components are neatly arranged, more delicate and beautiful 4. Products with overcharge, overcurrent, overdischarge, short-circuit protection, etc., more safe and reliable 5. Wide range of applications, suitable for a variety of industrial DIY occasions Parameter: 2S 7.4V 6A/10A BMS: Wiring mode: same port Single battery overdischarge voltage: 2.35V±0.025V Continuous operating current: 6A/10A Instantaneous protection current: 15A/30A Overcurrent recovery conditions: charging recovery or load disconnection Short-circuit recovery condition: charging recovery or disconnecting the load Single battery overcharge voltage: 4.28V±0.025V Continuous charging current: 6A/10A Charger voltage: 8.4V (recommended) Operating power consumption: ≤10uA Main circuit on-resistance: ≤15mΩ/≤10mΩ

2S 7.4V 5A/10A BMS with nickel chip version: Wiring mode: same port Single battery over-discharge voltage: 2.35V±0.025V Continuous operating current: 5A/10A Instantaneous protection current: 12A/36A Overcurrent recovery conditions: charging recovery or load disconnection Short-circuit recovery condition: charging recovery or disconnecting the load Single battery overcharge voltage: 4.28V±0.025V Continuous charging current: 6A/10A Charger voltage: 8.4V (recommended) Operating power consumption: ≤10uA Internal resistance of main circuit conduction: ≤15mΩ/≤10mΩ Frequently Asked Questions: How much A protection board should I choose? A: How many A protection board depends on the motor power of your electric car or the controller current limit, such as 250W below 15A, 500W below 20A, 800W below 30A, the protection board current can not be less than the controller current limit.

My battery is 20AH, can I use this protection board? A: The size of your battery capacity and the size of the current with this board is not directly related to the size of the capacity is not a large battery, mainly to see the continuous current, that is to say, the larger your motor, you choose to protect the board continuous current to be larger, with your battery capacity is not directly related. Package include: Lithium battery protection board * 2 (style optional) label:yes

Battery capacity: 43200
