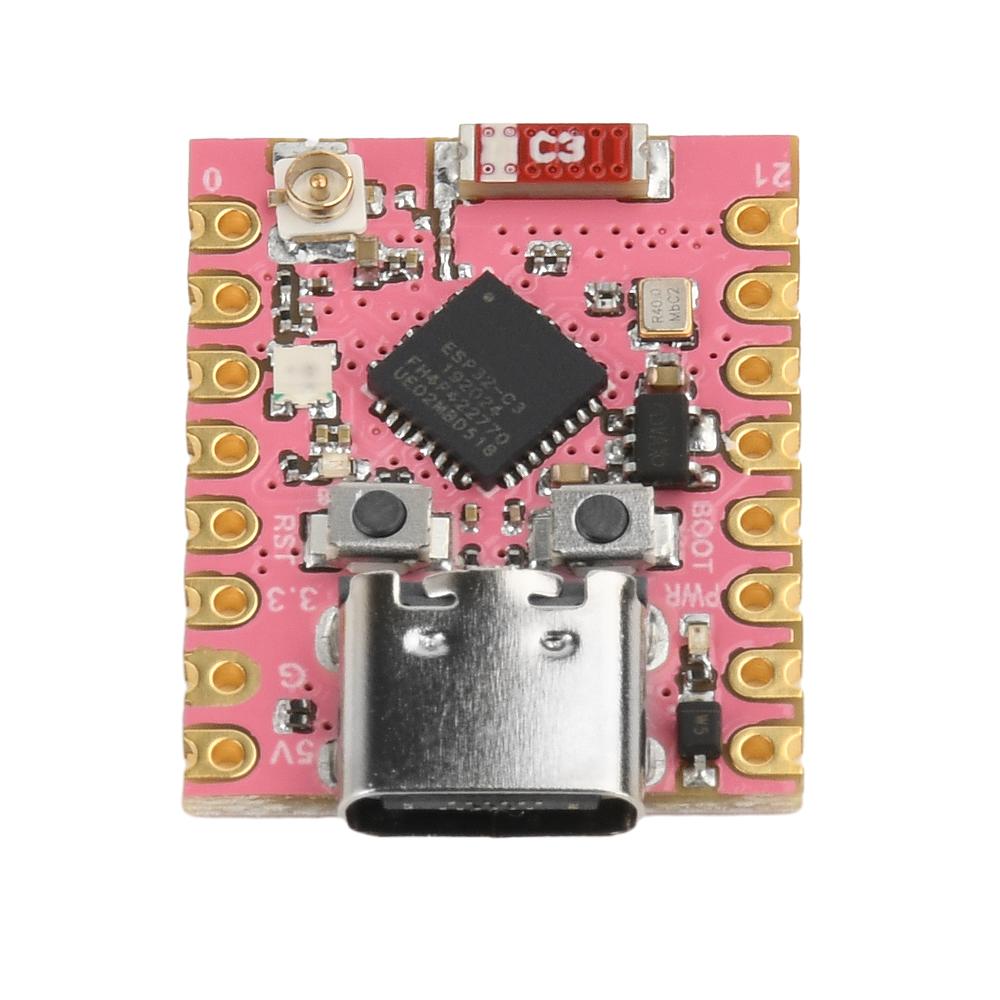

ESP32-C3 Super Mini Plus Development Board WiFi Bluetooth 5.0 ESP32 C3 Super mini V2.0 Red ESP Development Board

High-concerned chemical : none Type : Module Brand Name : diymore Origin : Mainland China Condition : New

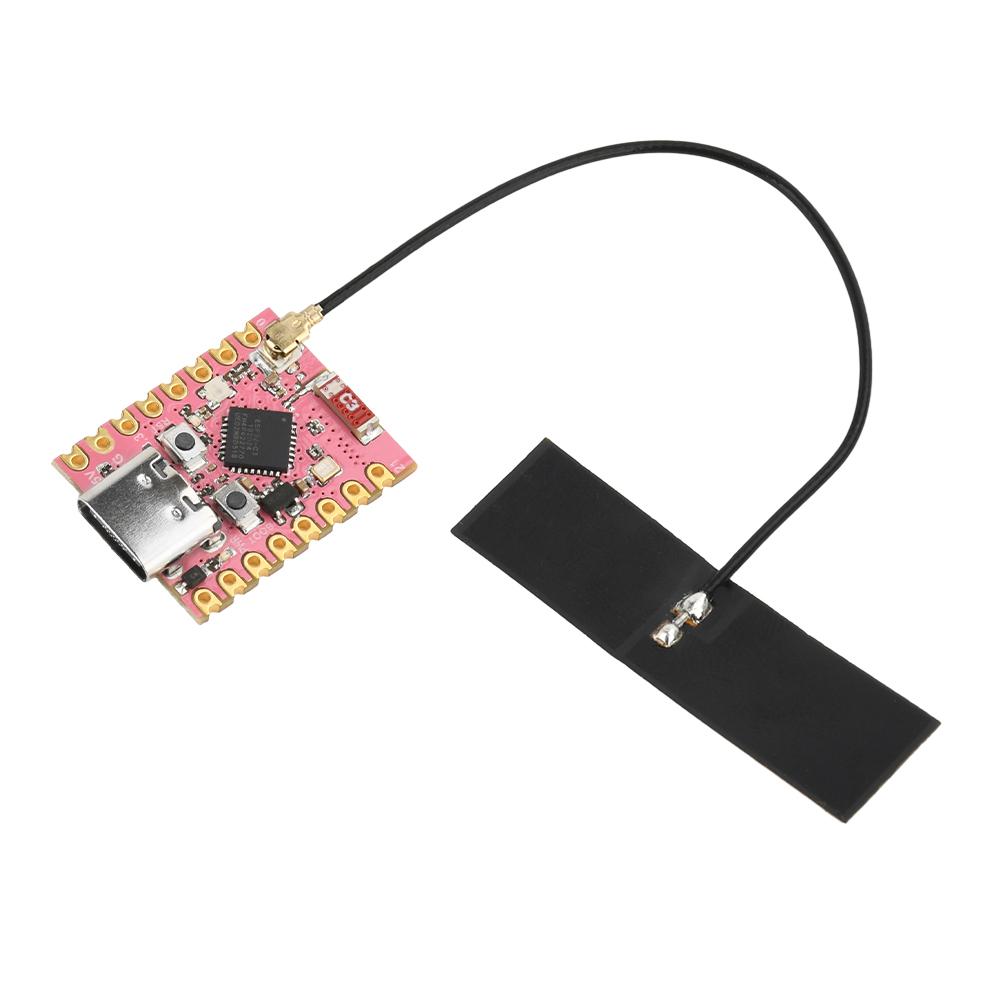

Features: 1. Powerful computing power: Based on ESP32-C3 chip, 32-bit RISC-V CPU, supporting 32-bit single precision operations. 2. Excellent performance: Supports IEEE 802.11 b/g/n Wi Fi and Bluetooth 5 (LE), with external antenna for enhanced signal strength. 3. Function upgrade: Added antenna interface, added RGB module, more comprehensive functions. 4. Compact and exquisite design: single-sided surface mount design, compact in size, suitable for low-power IoT and wireless wearable devices. 5. High cost performance option: With high performance, low power consumption, and reset and boot loading buttons, it is an ideal choice for developing IoT applications. Parameter: Powerful CPU: ESP32-C3， 32-bit RISC-V single core processor with a running frequency of up to 160 MHz WiFi: 802.11b/g/n protocol, 2.4GHz, supports Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode Bluetooth: Bluetooth 5.0 Ultra low power consumption: Deep sleep power consumption of about 43 μ A Rich board resources: 400KB SRAM, 384KB ROM with built-in 4Mflash. Chip model: ESP32C3FN4 Reliable security features: support AES-128/256, hash RSA、HMAC、 Digital signature and secure boot encryption hardware accelerator Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC Single sided components, surface mount design Onboard LED blue light: GPO8 pin Ultra small size: as small as the thumb (22.52x18mm) with a classic appearance, suitable for wearable devices and small projects instructions: Enter download mode: Press and hold the BOOT button on ESP32C3, then press the RESET button, release the RESET button, and then release the BOOT button. At this point, ESP32C3 will enter download mode. (Every time you connect, you need to re-enter the download mode. Sometimes, if you press it once, the port may become unstable and disconnect. You can determine this by recognizing the sound on the port.) Attention: If external power supply is required, simply connect the external power supply+stage to the 5V position and GND to the negative terminal. (Supports 3.3-6V power supply). Remember that when connecting to an external power source, USB cannot be connected, and only one can be selected between USB and external power supply. Package Include: 1X development board+2X needle arrangement (color random)+1X antenna ipex 1st generation
