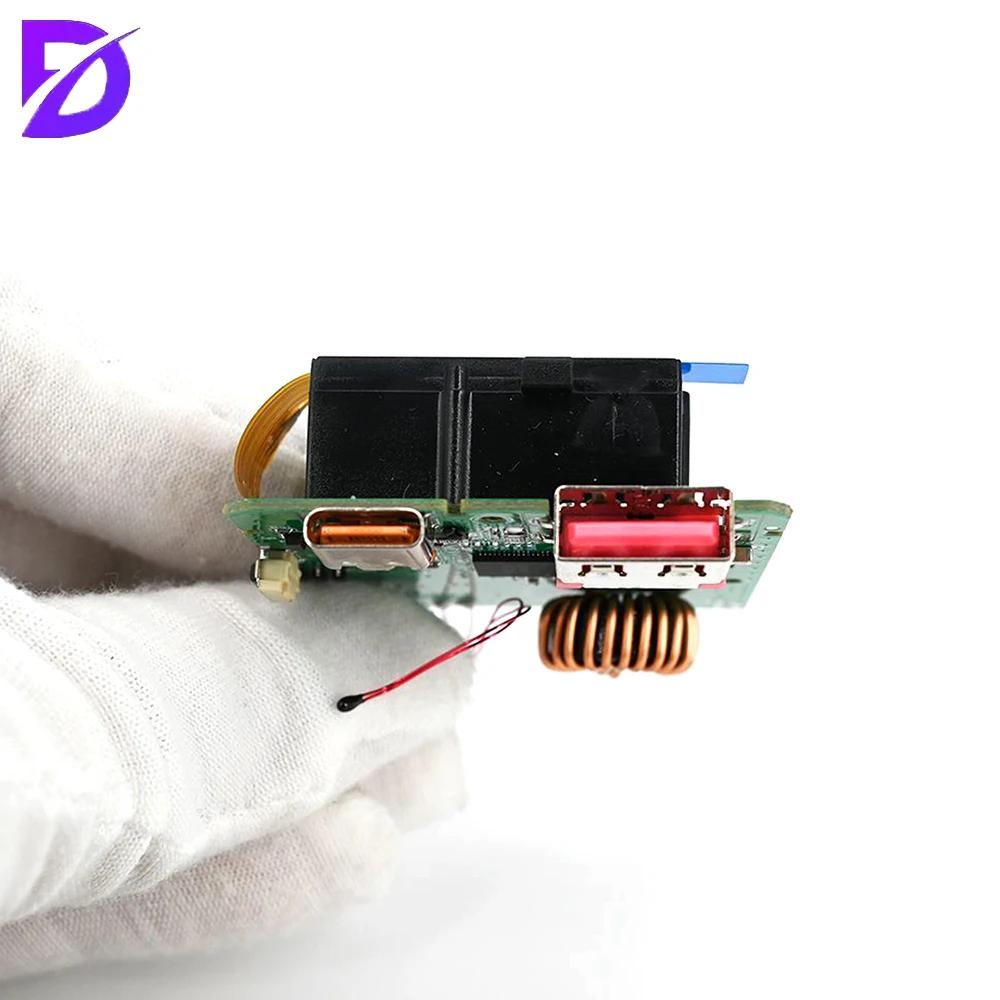

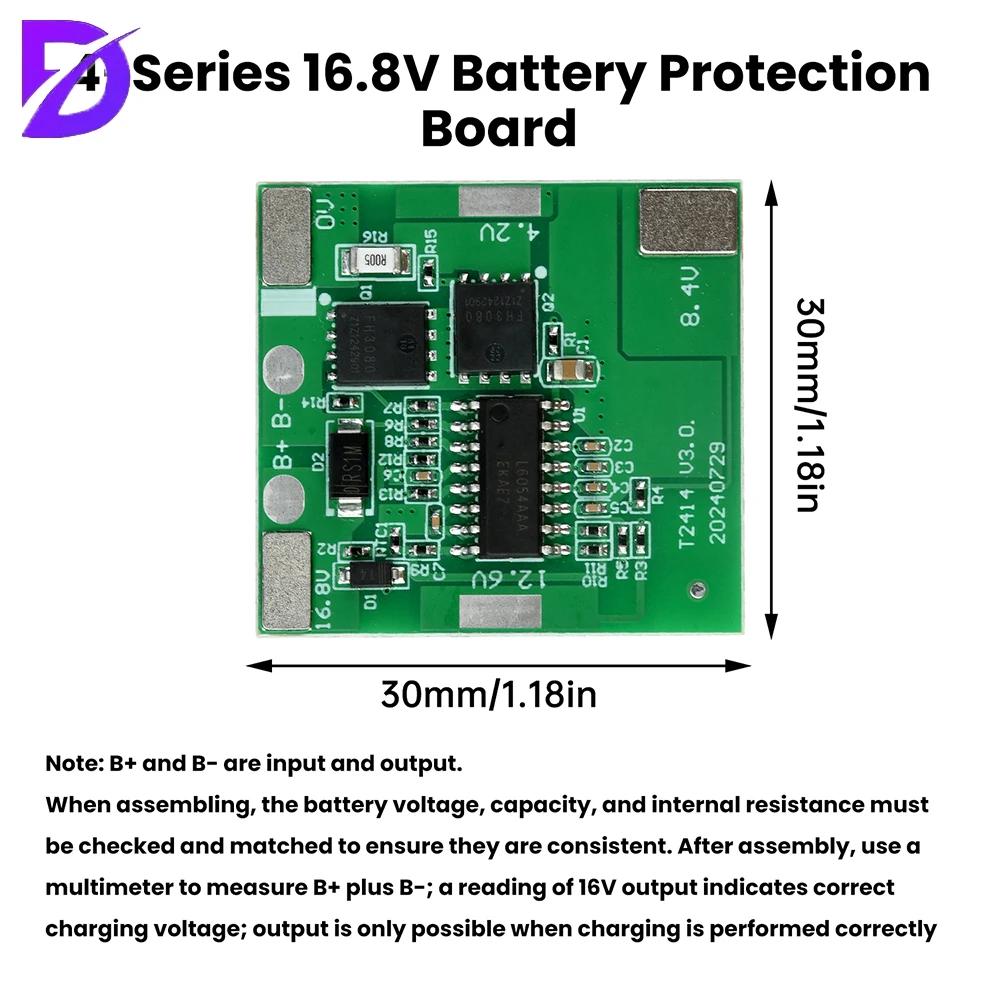

High-Power PD 100W Fast Charging Module 4S Battery Protection Board TFT Color Screen Digital Display Power Bank Mainboard

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Dissipation Power : 100W Supply Voltage : 5V Type : Module Brand Name : diymore Operating Temperature : -40℃ ~ +85℃ Origin : Mainland China Condition : New Product Name : Mobile Power Fast Charging Module Input parameters : 5V3A/9V2A/12V1.5A/20V3.25A Output parameters : 5V3A/9V2A/12V1.5A/10V2.25A/20V5A Interface : Type-C+USB Display screen : 0.96-inch TFT color screen Protocol : PD \ QC \ FCP \ SCP, etc PD output : 100W PD input : 65W

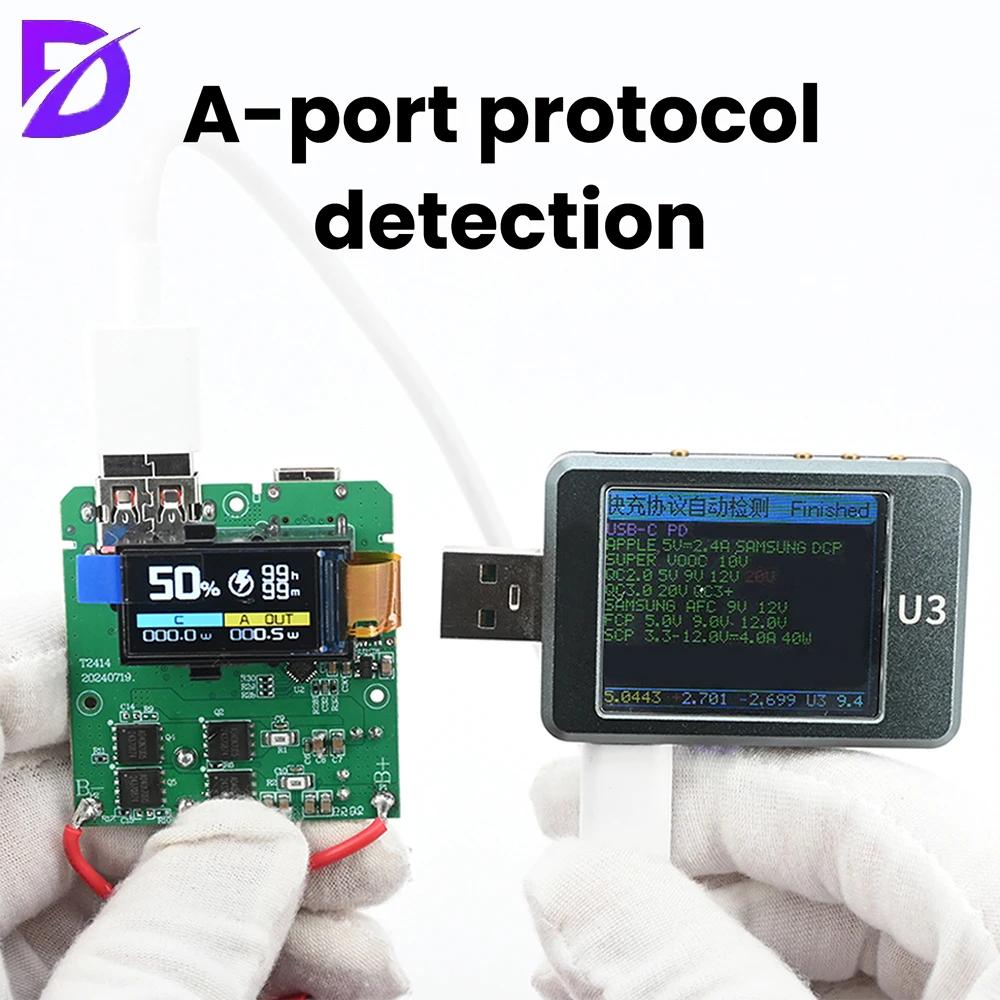

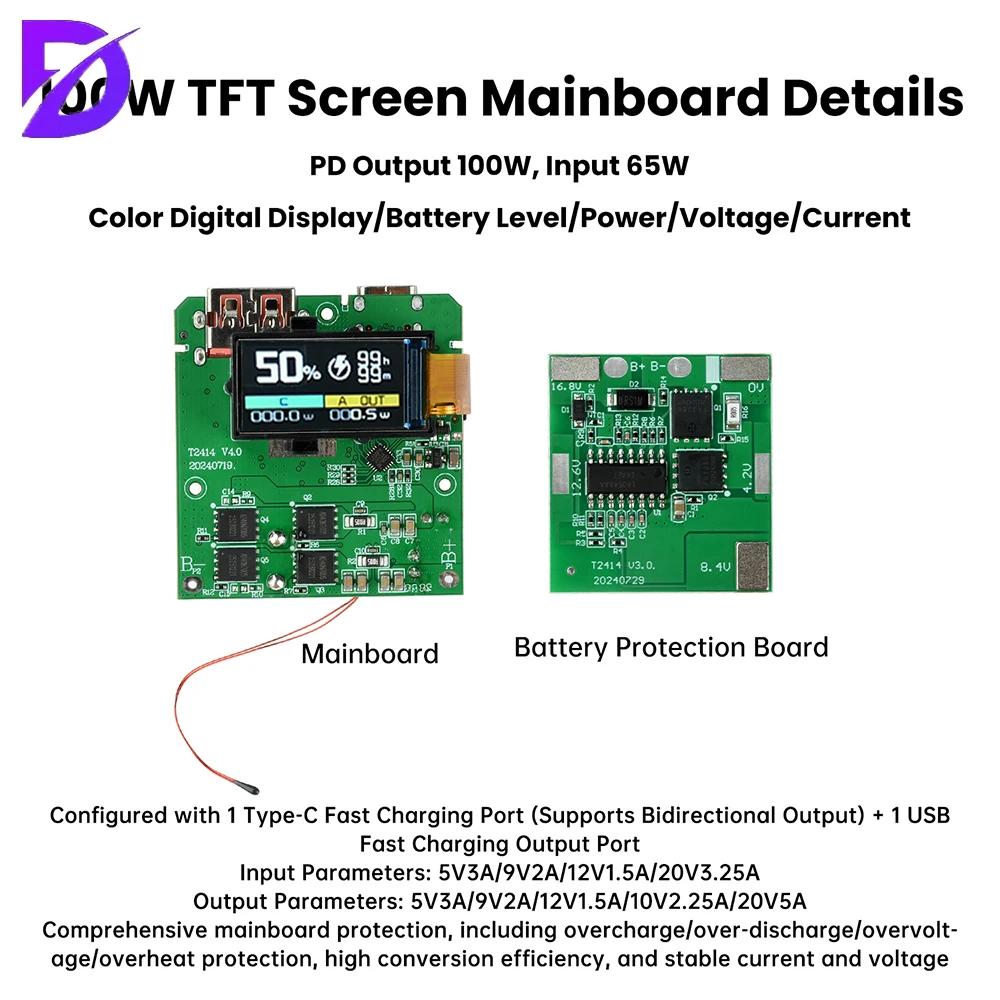

Features: 1. Supports PD 100W high-power fast charging for efficient and rapid charging, meeting diverse device needs 2. Equipped with a TFT color display showing real-time battery level, voltage, and current for clear status visibility 3. Compatible with multiple mainstream fast charging protocols including PD/QC, widely adaptable to various smart devices 4. Built-in multi-level safety protection with automatic safeguards against overcharging, over-discharging, overvoltage, and overheating for added peace of mind 5. High conversion efficiency design minimizes energy loss, delivering stable output current and voltage to prevent device damageParameter: Product Name: Portable Power Bank Fast Charging Module Input Parameters: 5V3A/9V2A/12V1.5A/20V3.25A Output Parameters: 5V3A/9V2A/12V1.5A/10V2.25A/20V5A Interfaces: 1 Type C fast charging port (supports bidirectional output) + 1 USB fast charging output port Display: 0.96-inch TFT color screen showing battery level/power/voltage/current Protocols: PD\QC\FCP\SCP, etc. Features: Comprehensive motherboard protection including overcharge/over-discharge/overvoltage/overheat safeguards. High conversion efficiency with stable current and voltage output. Notes: 1. PD output: 100W; input: 65W 2. Screen illuminates for one minute upon motherboard startup during output/input, then automatically dims while maintaining operational status Assembly Instructions: 1. Upon receiving the mainboard, first connect the charging cable for input testing. Observe the display status and confirm the screen illuminates before proceeding with soldering. 2. For normal operation, the battery wires must be soldered directly. Connections via wire twists, alligator clips, or spring clips may cause insufficient power supply, affecting charging/discharging. Ensure proper insulation protection for the battery terminals to prevent accidental contact with the mainboard during use, which could cause damage. 3. Connect the battery positive terminal to the B+ pin on the mainboard and the negative terminal to the B- pin. Do not reverse polarity, as this will burn the mainboard. Burn marks on the IC indicate reverse connection or accidental contact. 4. Use ternary lithium batteries only; lithium iron phosphate batteries are incompatible. Solder the battery in a 4-series configuration to the protection board before connecting to the mainboard. Refer to the detailed diagram for specific soldering methods. Usage Instructions: 1. Regarding activating fast charging on phones: Phone fast charging protocols are categorized as public or proprietary. This motherboard employs an intelligent fast-charging chip compatible with mainstream public fast-charging protocols, supporting rapid charging for various phone s. Verify your phone's compatibility with public protocols to ensure fast charging functionality. 2. Regarding heat generation during charging: When the power bank operates, current flows through the mainboard and chip, causing energy conversion losses. These losses dissipate as heat. Higher power during fast charging results in more noticeable heat, which is a normal physical phenomenon. 3. The battery level display may be inaccurate immediately after connecting the battery. The battery meter supports self-learning of battery capacity and will function normally after several charge/discharge cycles. Package include: Module x2

label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port
