power integrated solar wind energy storage cabinet with MPPT controller and remote control

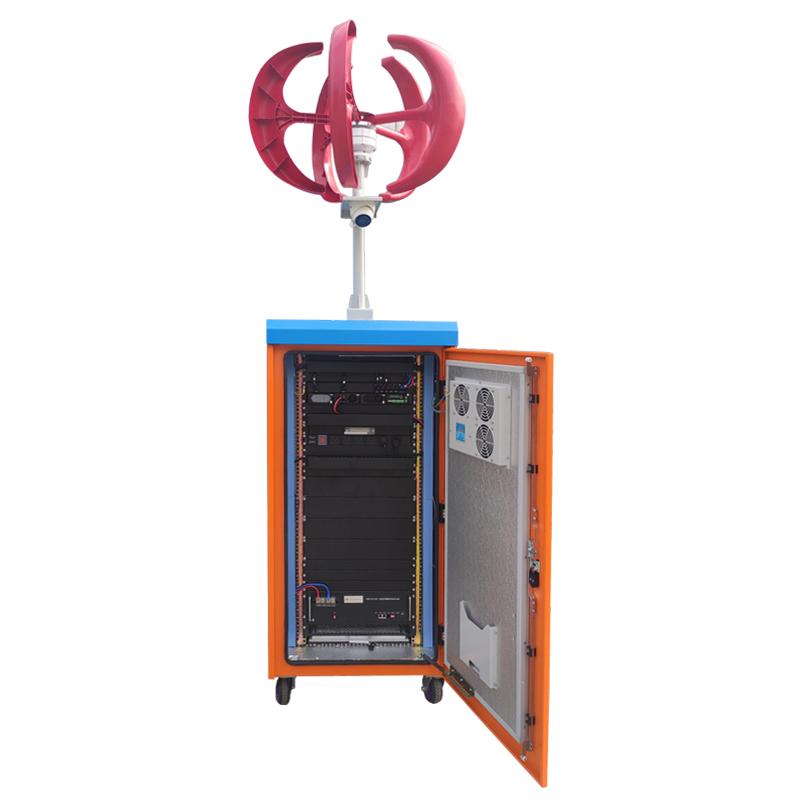

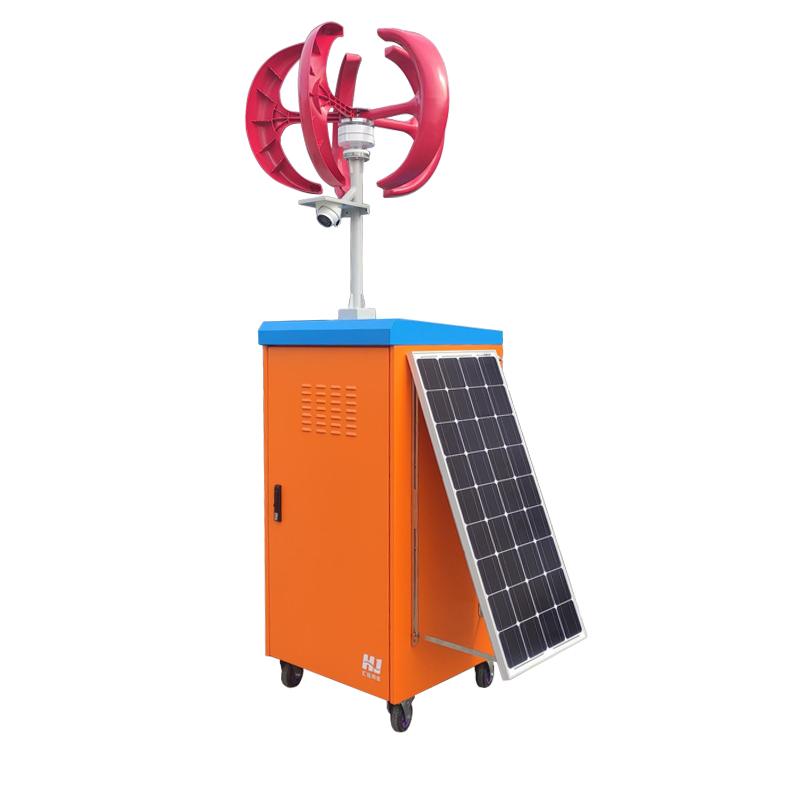

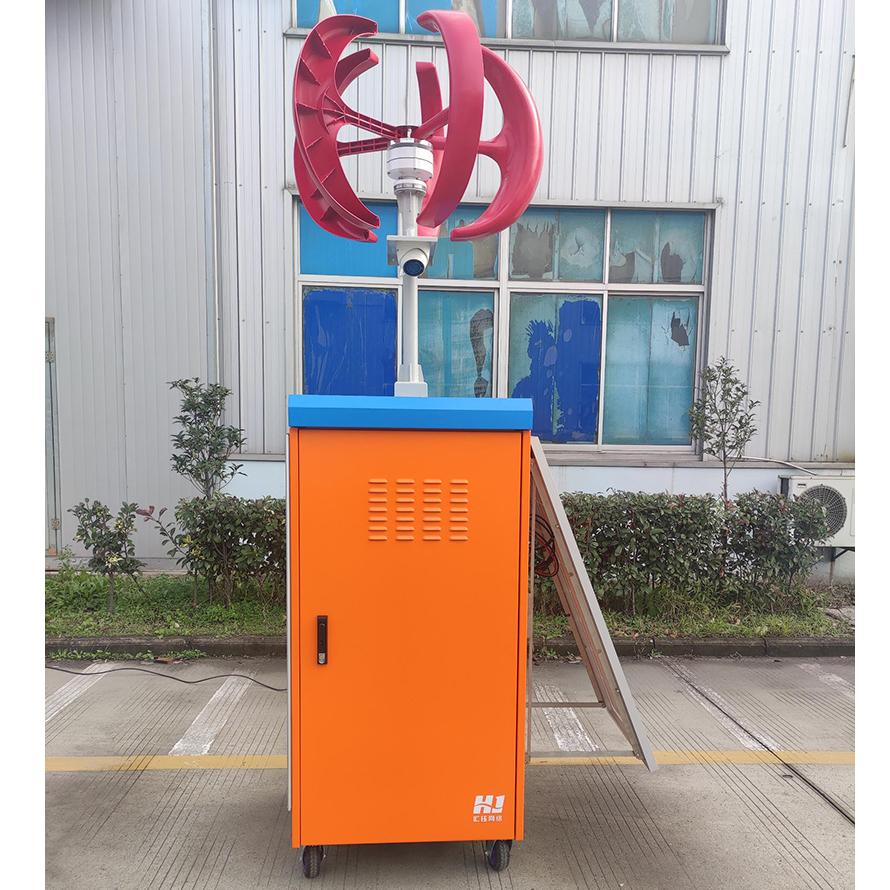

Product Description Solar outdoor integrated cabinet is an outdoor integrated cabinet made of high-quality metal sheet materials, which can integrate photovoltaic power generation, wind power generation, professional equipment, network communication equipment, system power supply, AC and DC power distribution, monitoring system, temperature control equipment , battery system and lightning protection grounding, and an integrated cabinet that provides outdoor working environment and safety management for base stations. It is mainly used in various outdoor scenarios such as roofs, streets, mountains, railways, and high and low temperature environments.

Main parameter configuration table

No. Name Technical parameter Qty. Unit 1 Cabinet Size 1600 * 750 * 750mm, galvanized sheet, 1.5mm thick cabinet plate, 12mm aluminum foil cotton insulation layer inside, 2.0mm

thick column and load-bearing plate, stainless steel fasteners, line management ring on the side of column, universal wheel on the

base 1 Set 2 Doors and locks Front door opening, including three-point linkage lock 1 Set 3 Temperature control equipment Speed regulating fan, intelligent fan speed controller 1 Set 4 Lighting DC48V, 12W LED light, including access control switch 1 Set 5 Access control AZ-7121 long-rod roller type, concealed wiring, copper point, Kalan 1 Set 6 Laminate Galvanized sheet 1.2mm, bearing 50KG 1 Set 7 L-shaped bracket Galvanized sheet 1.5mm, bearing 50KG 5 Pair 8 Switching Power Supply Multi-input and output power supply system: 1 Set

2U high, configured with 1U high circuit breaker, AC input 32A, output 16A, including lightning arrester; DC output 16A * 5,

battery switch * 1; Power supply monitoring module * 1, including smoke sensor, temperature and humidity sensor;

Set 9 Rectifier module 50A rectifier module, efficiency: ≥ 95% 1 Set 10 PV module PV module 75AMPPT efficiency: ≥ 99% 1 Set 11 Inverter module 3KVA 1 Set 12 DC12V conversion power supply DC48-DC12 DC transfer switch power supply (100W) 1 Set 13 PDU Rack type, 1U, 6-position PDU, national standard socket, with switch and indicator light 1 Set 14 Lithium iron battery 48V 100AH 1 Set 15 Solar PV module Single crystal 100W, size 1200 * 540 * 30mm, including accessories and photovoltaic cable red and blue 5 meters; 1 Set 16 Wind power generation module S type, NE-100S, red lantern shape 100W 1 Set 17 Packaging method Carton+wooden tray 1 Set 18 Other According to requirements 1 Set

Application Scenarios
