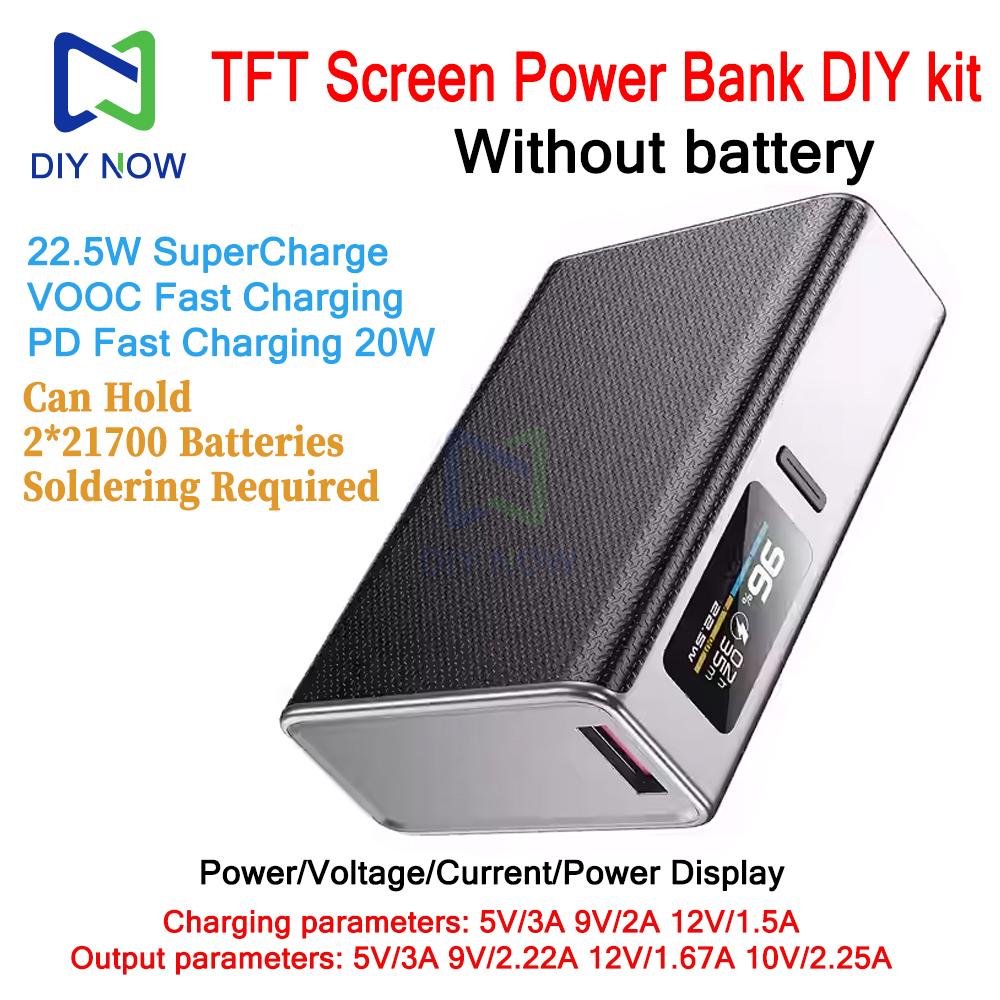

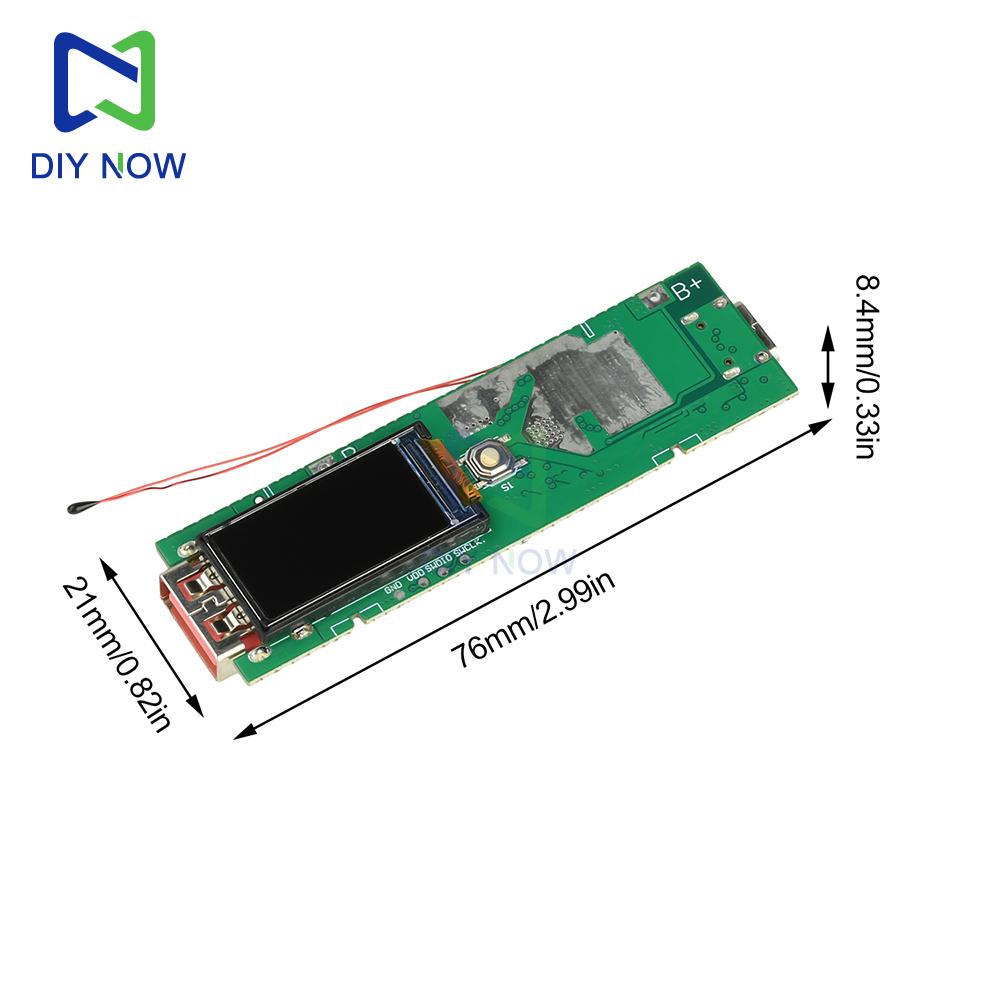

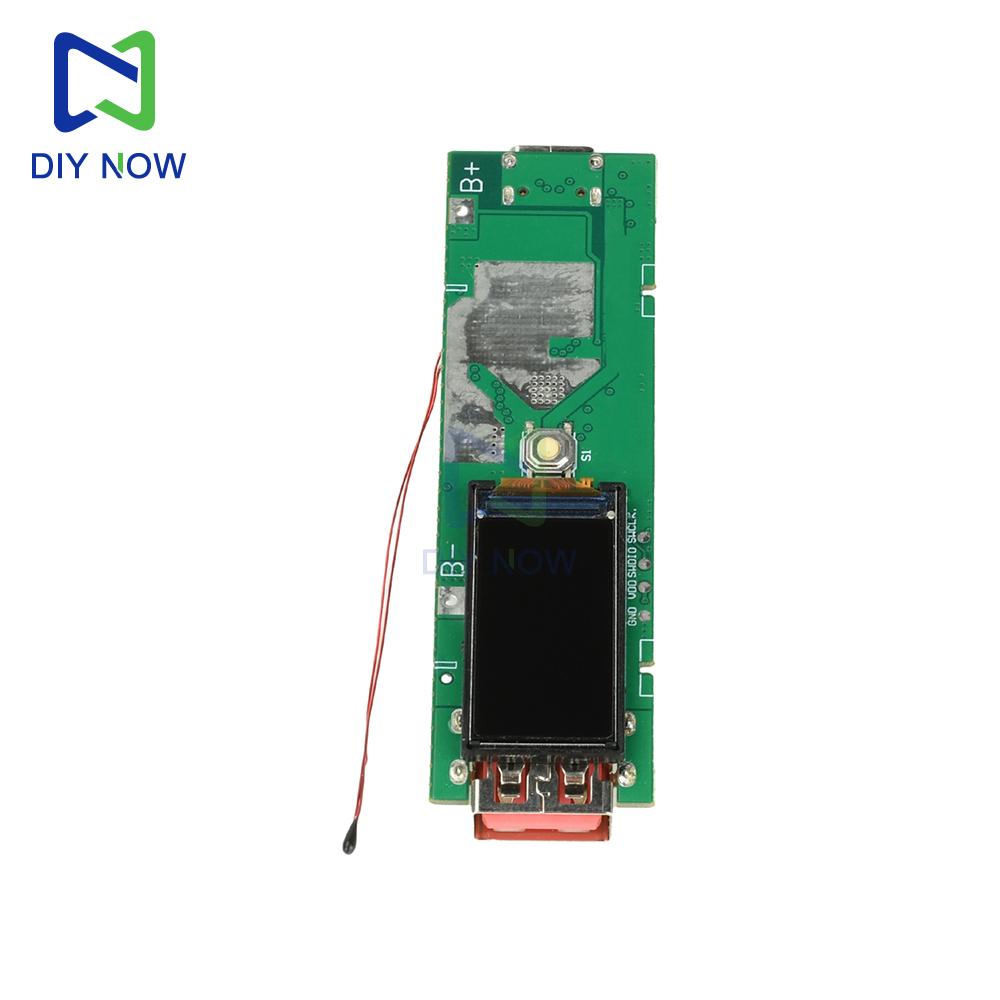

22.5W Fast Charging Module 0.96-inch TFT Digital Display Fast Charging Power Bank Motherboard DIY Power Module PD/QC/SCP/VOOC

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

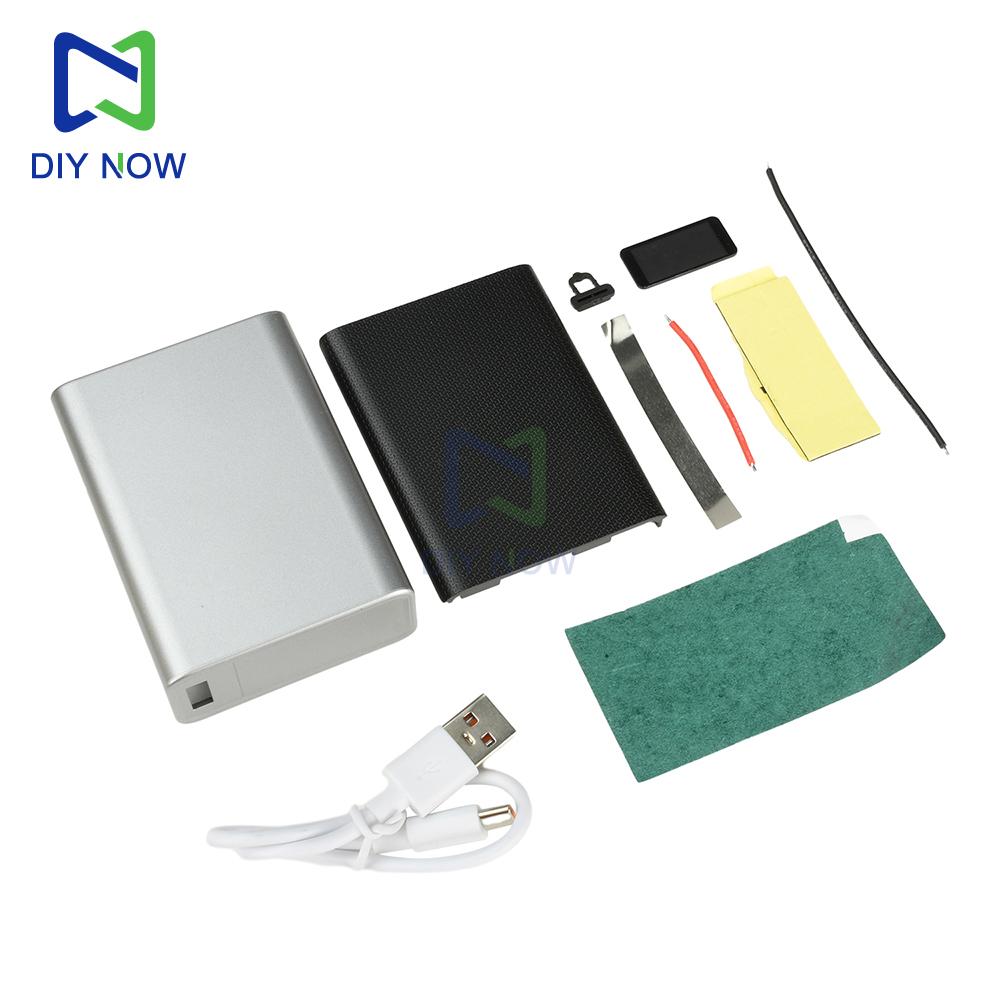

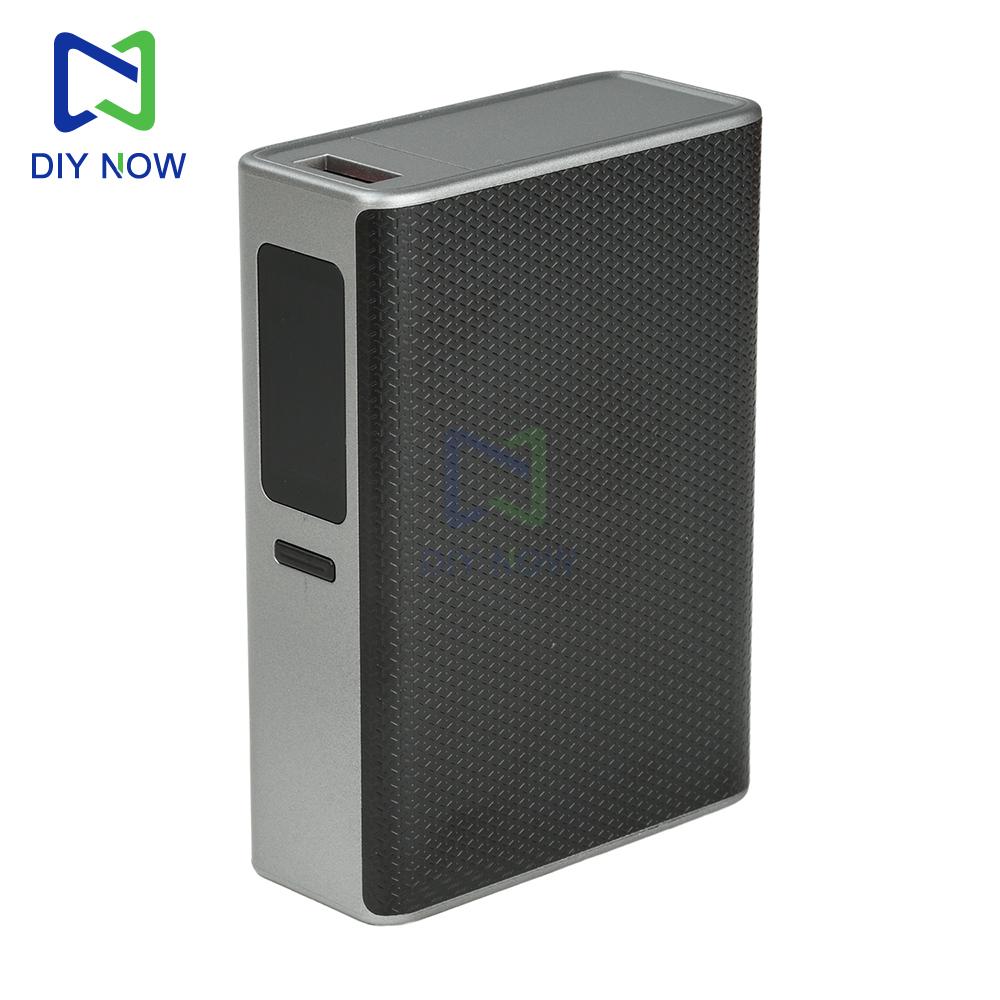

Features: 1. Equipped with a TFT smart digital color display for clear visibility of charging status and remaining battery level 2. Supports 22.5W super-fast charging, compatible with PD/QC/VOOC multi-protocol fast charging 3. Dual-port design (Type C + USB) to meet simultaneous charging needs for multiple devices 4. Built-in multi-level safety protection against overvoltage, overheating, and overcharging/overdischarging 5. High-efficiency circuit design minimizes power loss for stable, rapid charging Parameter: Product Name: Portable Power Bank Kit Input Parameters: 5V3A/9V2A/12V1.5A Output Parameters: 5V3A/9V2A/12V1.5A/10V2.25A Display: 0.96-inch TFT color screen Interfaces: 1 Type C fast-charging port (supports both charging and output) + 1 USB fast-charging output port Battery Compatibility: Accommodates 2 x 21700 batteries (soldering required; batteries not included) Features: Comprehensive motherboard protection including overcharge/over-discharge/overvoltage/overheat safeguards. High conversion efficiency with stable current and voltage output. Note: 22.5W supports VOOC Flash Charge protocol. Bidirectional fast charging operates at PD 20W protocol. Simultaneous multi-port output does not support fast charging. Assembly Instructions: 1. Upon receiving the mainboard, first connect the charging cable for input testing. Observe the display status and confirm the screen illuminates before proceeding with soldering. 2. For normal operation, the battery wires must be soldered directly. Connections via wire twists, alligator clips, or spring clips may cause insufficient power supply, affecting charging/discharging. Ensure proper insulation protection for the battery terminals to prevent accidental contact with the mainboard during use, which could cause damage. 3. Connect the battery positive terminal to the B+ pin on the mainboard and the negative terminal to the B- pin. Do not reverse polarity. Reversal will burn the mainboard; burnt ICs will show visible traces. This damage occurs only from reverse connection or accidental contact. 4. Use 3.7V lithium batteries only. Lithium iron phosphate batteries are not compatible. Connect batteries in parallel, not series. Series connection creates excessive voltage that will burn the mainboard. 5. The mainboard incorporates built-in protection. Soldered batteries require no additional protection board. Battery protection boards impose current limits; exceeding these limits will cause output disconnection. 6. After installing the mainboard and batteries, secure the batteries with adhesive tape. For battery models with thickness discrepancies relative to the casing, assess whether spacers are needed to prevent a sagging sensation when pressing the casing after assembly. Issues like battery rattling or casing deformation due to failure to check thickness differences or secure batteries with tape constitute improper assembly. We assume no responsibility for casing damage or battery failure resulting from disassembly under such circumstances. 7. The snap-fit casing is not designed for repeated disassembly. Always test all functions—motherboard output/input, fast charging, buttons, display, etc.—before closing the casing. Ideally, perform several charge/discharge cycles to confirm functionality before sealing. Issues arising from assembling and closing the casing without prior testing constitute improper assembly. We assume no responsibility for casing damage or battery failure resulting from disassembly required due to such issues. Instructions: 1. Regarding activating fast charging for your phone: Fast charging protocols are categorized as public or proprietary. This motherboard utilizes an intelligent fast-charging chip compatible with mainstream public fast-charging protocols, supporting rapid charging for various smartphone s. Before ordering, please verify your phone's compatibility with public protocols to ensure fast charging functionality. 2. Regarding heat generation during charging: When the power bank operates, current flows through the mainboard and chips, resulting in energy conversion losses. These losses dissipate as heat. During fast charging, higher power output causes more noticeable heat—a normal physical phenomenon. 3. Battery capacity display may appear inaccurate immediately after connecting the battery. The battery meter features self-learning capacity recognition. It will display accurately after several charge/discharge cycles. Package include: Package1: Module x1 + wiring x2 Package2: Module x1 + enclosure x1 + accessories x1 label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port
