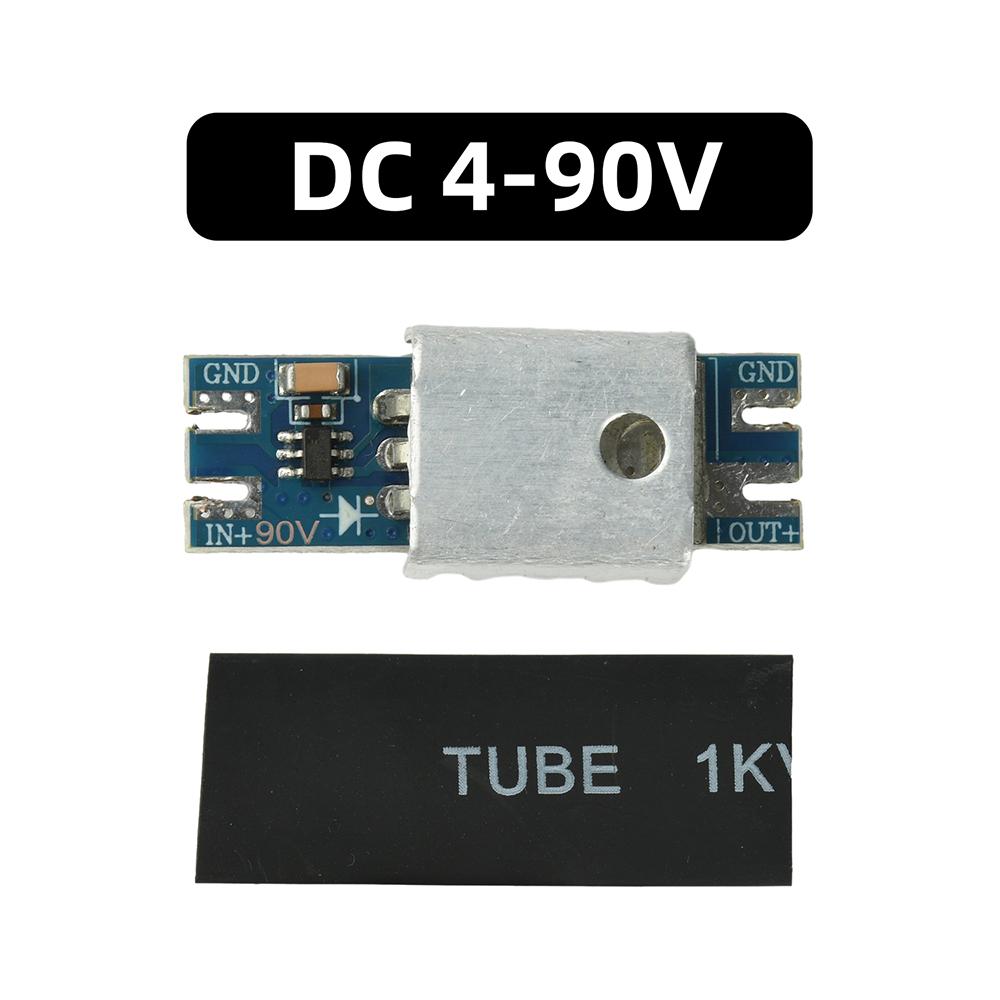

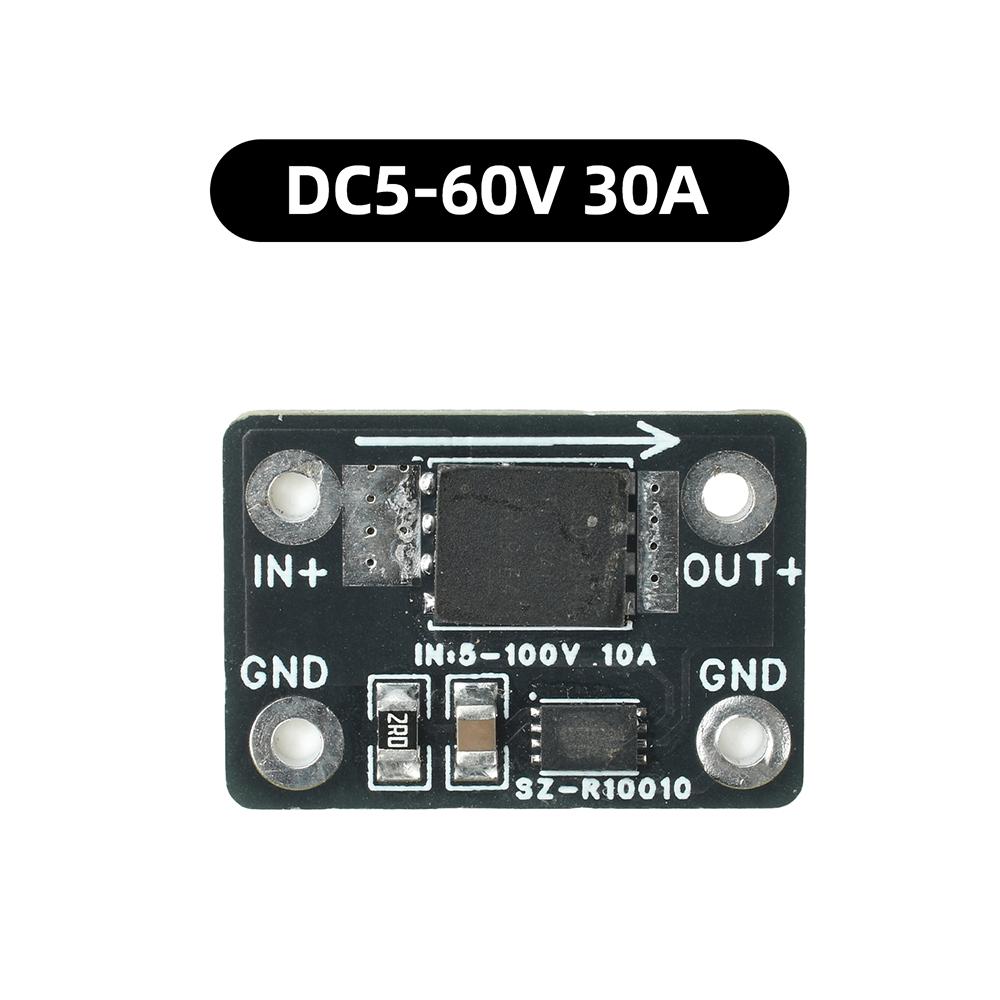

20A/25A/30A high-current ideal diode module DC 4-90V/60V Anti-Reverse Flow for Solar Charging & Battery protect module

Quantity : 1 High-concerned chemical : none Package : SMD is_d : Yes Dissipation Power : / Supply Voltage : 5-100V Type : Module Brand Name : Gaqqee Operating Temperature : 0-50C Origin : Mainland China Condition : New wholesale : support dropshipper : support A : DC 5-100V TO DC 8-90V B : DC 4-90V to DC 3.5-60V/90V

Product Features 1. Free choice of 50A/70A high current for stronger load-bearing capacity 2. DC 4-90V wide voltage, suitable for multiple scenarios 3. Low voltage drop to prevent backflow and protect against overheating 4. Replace traditional diodes with high efficiency and low losses 5. Solar specific rectification for more stable charging

Product parameters Input voltage: DC 4-90V Working current: 50A/70A (if it exceeds 20A/30A, please strengthen heat dissipation) Static working current: 300uA Internal resistance during conduction: 50A: 1.5m Ω/70A: 0.75m Ω Conduction voltage drop: actual working current * conduction internal resistance, for example, when 10A, voltage drop=10 * 0.0036=0.046V Power loss during conduction: square of actual operating current * conduction resistance Open frequency: within 150HZ Reverse input protection: Yes, reverse connection does not burn Working temperature: -40~+125 ° C

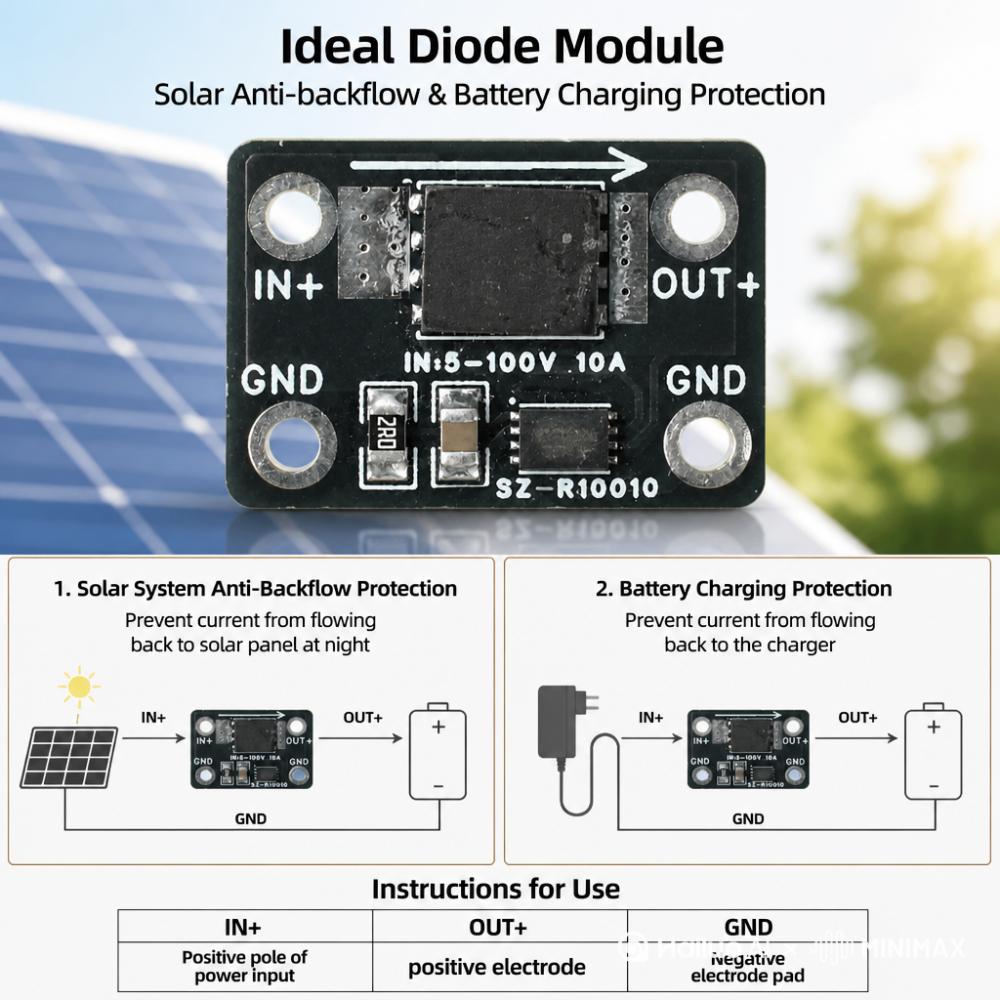

Scope of application 1. Dual power parallel supply and UPS application. 2. Redundant power supply application. 3. Parallel connection of primary/secondary batteries. 4. Drones, electronic devices, etc. are constantly powered to replace batteries. 5. Anti backflow of batteries, solar energy, and power modules. 6. DC electronic and power modules, electronic equipment input reverse protection.

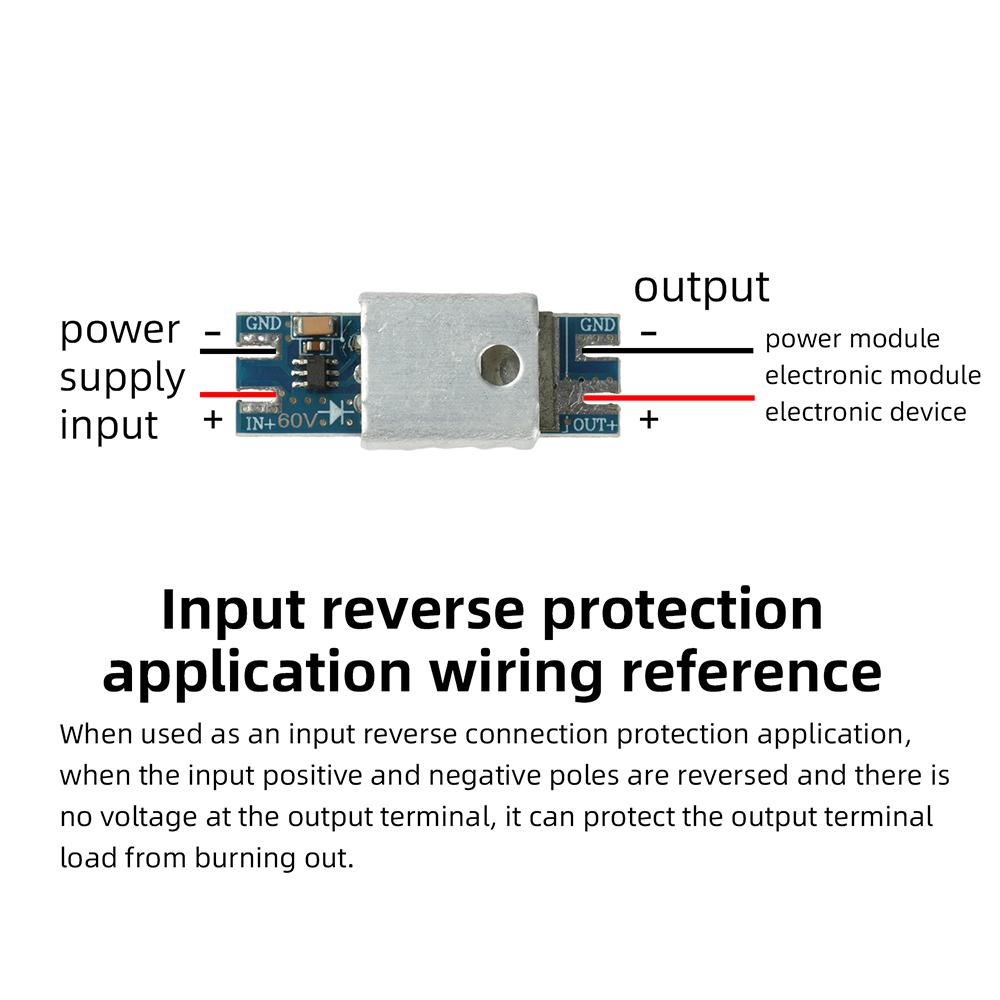

Precautions 1. The negative pole of the main current circuit does not need to pass through the module, but the negative pole on the module must be connected (using a thin wire). 2. It can only be used in DC, with a turn-on frequency not exceeding 150HZ, and cannot be used for AC rectification. 3. Pay attention to the breakdown of the chip by surge voltage. If the working voltage is high and there are inductive loads, please increase the input and output TVS diodes and electrolytic capacitors absorb surge voltages. 4. When the working current is high and the heat generation is significant, it is necessary to strengthen heat dissipation (by increasing the number of heat sinks or air cooling). 5. Multiple parallel connections can be used to increase current, or multiple parallel connections can be used to increase the number of channels. 6. When applying the main/auxiliary battery in parallel, if the main battery is not equipped with an ideal diode, attention should be paid to the voltage of the auxiliary battery Cannot exceed the voltage of the main battery. If both the main and auxiliary batteries are connected to ideal diodes, there is no voltage when connected in parallel Poor requirements. 7. Do not measure the internal resistance of an ideal diode using the diode and resistance settings of a multimeter, as this is an incorrect measurement Method: The internal resistance can be calculated by the voltage drop of an ideal diode and the current passing through it. For example, the current passing through is 10A, with a voltage drop of 0.015V and an internal resistance of 0.015V/10A=0.0015 ohms. Attention should be paid to the impact of voltage drop on the circuit.

Packing List Diode module * 1 (optional style) Heat shrink tubing * 1
