IP2336 2S Lithium Battery Module Type C Bidirectional PD Fast Charge Adjustable Charging Parameter 3A Output With 2S Balance

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 8.2V/8.4V/8.5V/8.8V Type : Module Origin : Mainland China Condition : New Feature 1 : 2S lithium battery charge discharge module Feature 2 : IP2336 power management board Feature 3 : Type C PD bidirectional fast charge module Feature 4 : 2S lithium battery balance protection board Feature 5 : adjustable charging voltage current module Feature 6 : 5V boost charge 5V step-down discharge Feature 7 : 2 series li-ion battery management module Feature 8 : over temperature short circuit protection Feature 9 : portable power supply diy board Feature 10 : bluetooth speaker power module

Product Features 1. Type-C port supports fast charging input and output, intelligent adaptation of voltage and current, efficient and time-saving charging and discharging 2. The charging voltage can be adjusted to 8.2V/8.4V/8.5V/8.8V, accurately matching 2S lithium battery cells 3. Charging current of 0.75A/1.12A/1.2A can be set, and external resistors can be deeply d to flexibly adapt to various needs 4. Built in 2S balancing circuit, with complete protection against overcurrent, overvoltage, short circuit, and over temperature NTC, ensuring safety and reliability 5. Mini integrated design: 35 × 18mm ultra small size, Type-C interface, space saving, easy to embed

Product Introduction This scheme is specifically designed for the application of two series connected lithium batteries (8.2V/8.4V/8.5V/8.8V), consisting of IP2336 (charge and discharge management) and CM1325 (battery protection+balancing): IP2336- Responsible for 5V boost charging (raising USB 5V to 8.2V/8.4V/8.5V/8.8V to charge the battery) and reverse buck discharging (lowering battery 8.2V/8.4V/8.5V/8.8V to 5V for external power supply), integrating DRP Try.SRC protocol and PD3.0 input-output fast charging protocol. CM1325- Responsible for battery balancing (real-time balancing of voltage difference between two batteries) and comprehensive hardware protection for overcharging, overdischarging, overcurrent, and short circuit. The combination of the two solves both the problem of "charge discharge conversion" and the problem of "battery longevity", making it the ideal power core for 2S lithium battery products such as Bluetooth speakers, power tools, portable energy storage, and power banks.

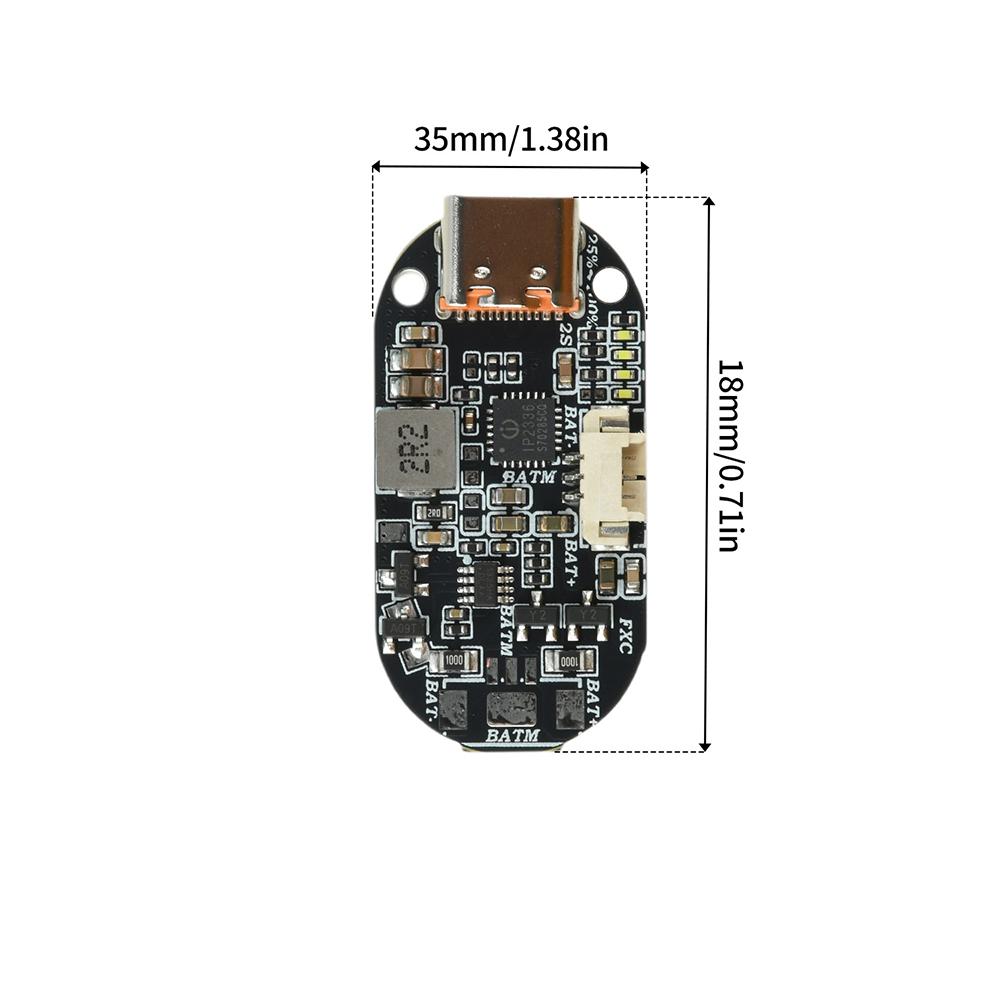

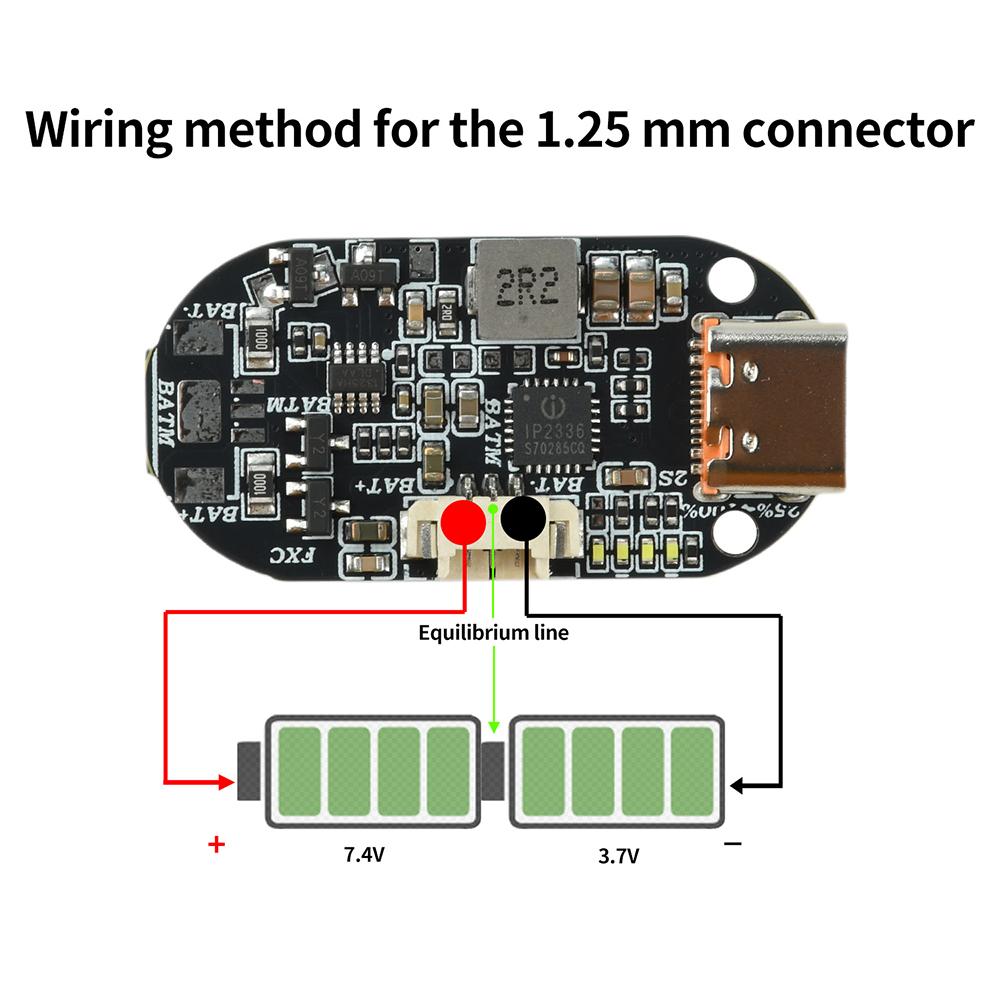

Product Specifications Product Name: 2-Cell Series Lithium Battery Charging and Discharging Module Input voltage: Lithium battery voltage (adaptive voltage during PD fast charging) Discharge voltage: 5V (voltage adaptive during fast charging) Discharge current: 3A (adaptive current during fast charging) Charging voltage: 2S lithium battery/lithium-ion battery charging (adjustable to set full charge voltage of 8.2V/8.4V/8.5V/8.8V) Charging current: 5V1.2A (adjustable charging current 0.75A/1.2A) Support setting charging current, charging voltage, input undervoltage threshold, input overvoltage threshold, charging timeout threshold and other parameters through external resistors Integrated 2S charging balance circuit, charging status LED indicator light It has functions such as output overcurrent, overvoltage, short circuit protection, chip over temperature, NTC temperature protection, etc Module interface: Type C, solder hole/1.25MM-3P interface

Packing List Module * 1 label:yes
